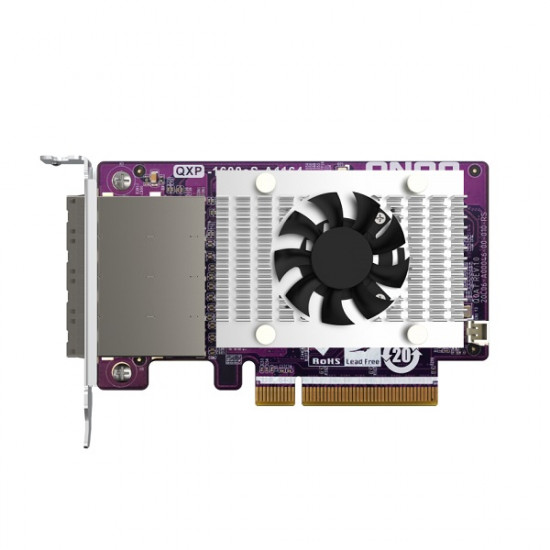

QXP-1600eS-A1164 QNAP Easily Expand PC and NAS Storage
- Brand: Qnap
- Model: QXP-1600eS-A1164
- SKU: QXP-1600eS-A1164
- UPC: 885022023714
- MPN: QXP-1600eS-A1164
$199.00
Features:
The QNAP QXP-1600eS-A1164 expansion card is designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. The storage capacity of a QNAP NAS or Windows/ Ubuntu (Linux) PC can be easily expanded by installing a QXP-1600eS-A1164 into a PCIe slot, and then connecting it to a TL series JBOD storage enclosure using an SFF-8088 or SFF-8644 cable. The low-profile card form-factor allows the QXP-1600eS-A1164 to be compatible with a wide range of NAS, computers, and servers.
Specifications
- Controller - 4 x PCIe to SATA Controllers
- Connector - 4 x SFF-8644
- Supported SATA driver numbers - 16 x SATA 6Gb/s drives (Each SFF-8644 internal connector supports four SATA drives)
- PCIe interfaces - PCIe Gen3 x8 (64Gbps)
- Supported operating systems
- QTS 4.5.4 or later, QuTS hero h4.5.4 or later
- Windows 8 or later
- Windows Server 2012 R2 or later
- Linux with Kernel 3.10 or later
- Form factor - 117.72 x 68.9 x 18.26 mm (Without connector 111.65 x 68.9 x 18.26 mm)
- Cable - QNAP provides 1.0M SFF-8644 to SFF-8088 cable for optional purchase
