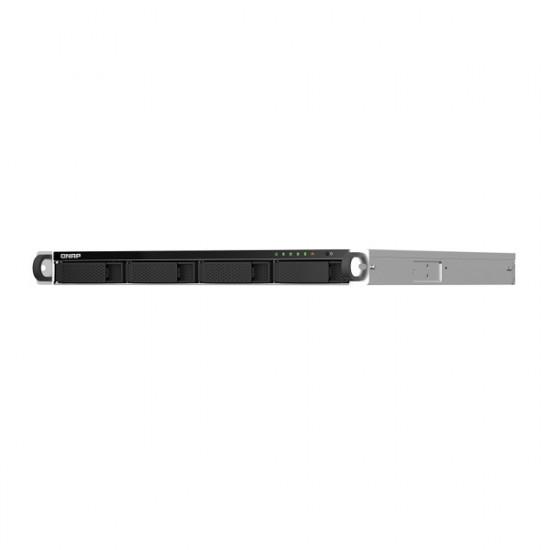

TS-464U-8G-US QNAP 4-Bay Rackmount NAS/iSCSI/IP-SAN 2.9 GHz Intel Celeron N5105/N5095 4-core/4-thread 8GB RAM - No HDD

Features:

• Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
• Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data
• Qtier auto-tiering technology and SSD caching enable constant storage optimization
• Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464U, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card
• Host multiple containerized apps to run a wide range of applications and services
• Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units

Specifications

• CPU - Intel Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
• CPU Architecture - 64-bit x86
• Graphic Processors - Intel UHD Graphics
• Floating Point Unit - Yes
• Encryption Engine - Yes (AES-NI)
• Hardware-accelerated Transcoding - Yes
• System Memory - 8 GB on board (non-expandable)
• Maximum Memory - 8 GB
• Flash Memory - 4GB (Dual boot OS protection)
• Drive Bay - 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
• Drive Compatibility
  • 3.5-inch bays
  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives
• Hot-swappable - Yes
• M.2 Slot - Optional via a PCIe adapter
• SSD Cache Acceleration Support - Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2 (2.5G/1G/100M/10M)
• Wake on LAN (WOL) - Yes
• Jumbo Frame - Yes
• PCIe Slot - 1, Slot 1: PCIe Gen 3 x2
• USB 2.0 port - 2
• USB 3.2 Gen 2 (10Gbps) Port - 2 x Type A USB 3.2 Gen 2
• HDMI Output - 1, HDMI 1.4b
• Form Factor - 1U Rackmount
• LED Indicators - HDD 1-4, Status, LAN, Expansion, Power
• Buttons - Power, Reset
• Dimensions (HxWxD) - 43.3 × 482.6 × 483.9 mm
• Weight (Net) - 6.6 kg
• Weight (Gross) - 8.54 kg
• Operating Temperature - 0 - 40 °C (32°F - 104°F)
• Storage Temperature - -20 - 70°C (-4°F - 158°F)
• Relative Humidity - 5-95% RH non-condensing, wet bulb: 27 ̊C (80.6 ̊F)
• Power Supply Unit - 250W (x1), 100-240V
• Power Consumption: HDD Sleep Mode - 22.285 W
• Power Consumption: Operating Mode, Typical - 36.81 W
• Fan - 2 x 40mm, 12VDC
• System Warning - Buzzer
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory - 1500

TS-464U-8G-US Specifications PDF
