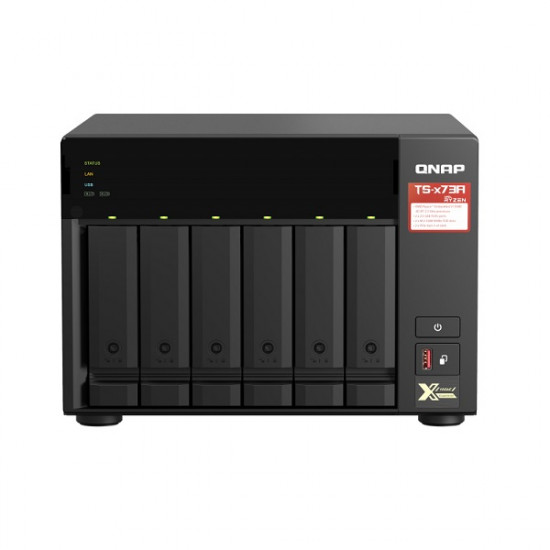

TS-673A-8G-US QNAP 6-Bay Desktop NAS 2.2 GHz AMD Ryzen Embedded V1500B quad-core 8GB RAM - No HDD

Features:

• Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking
• Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel
• Supports entry-level NVIDIA graphics cards for video processing or GPU-passthrough to VMs
• Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization
• Host containerized applications and virtual machines with various operating systems
• Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability

Featuring an AMD Ryzen V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-673A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-673A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.

Specifications

• CPU - AMD Ryzen Embedded V1500B quad-core 2.2 GHz processor
• CPU Architecture - 64-bit x86
• Graphic Processors - Optional via a PCIe adapter
• Floating Point Unit - Yes
• Encryption Engine - Yes (AES-NI)
• Hardware-accelerated Transcoding - Optional via a PCIe adapter
• System Memory - 8 GB SO-DIMM DDR4 (1 x 8 GB)
• Maximum Memory - 64 GB ( 2 x 32 GB)
• Memory Slot - 2 x SO-DIMM DDR4, Support ECC memory
• Flash Memory - 5GB (Dual boot OS protection)
• Drive Bay - 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
• Drive Compatibility - 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
• Hot-swappable - Yes
• M.2 SSD Slot - 2 x M.2 2280 PCIe Gen3 x1 slots
• SSD Cache Acceleration Support - Yes
• 2.5 Gigabit Ethernet Port(2.5G/1G/100M) - 2
• 5 Gigabit Ethernet Port(5G/2.5G/1G/100M) - Optional via a PCIe adapter
• 10 Gigabit Ethernet Port - Optional via a PCIe adapter
• Wake on LAN (WOL) - Yes
• Jumbo Frame - Yes
• PCIe Slot - 2, Slot 1: PCIe Gen 3 x4, Slot 2: PCIe Gen 3 x4
• USB 3.2 Gen 2 (10Gbps) Port - 3 x Type-A USB 3.2 Gen 2 10Gbps, 1 x Type-C USB 3.2 Gen 1 5Gbps
• IR Sensor - Yes (QNAP RM-IR004)
• HDMI Output - Optional via a PCIe adapter
• Form Factor - Tower
• LED Indicators - Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2
• Buttons - Power, Reset, USB Auto Copy
• Dimensions (HxWxD) - 188.2 × 264.3 × 280.8 mm
• Weight (Net) - 5.78 kg
• Weight (Gross) - 7.35 kg
• Operating temperature - 0 - 40 °C (32°F - 104°F)
• Storage Temperature - -20 - 70°C (-4°F - 158°F)
• Relative Humidity - 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
• Power Supply Unit - 250W, 100-240V AC, 50-60Hz, 3.5A
• Power Consumption: HDD Sleep Mode - 21.891 W
• Power Consumption: Operating Mode, Typical - 45.898 W
• Fan - System fan: 2 x 92mm, CPU fan: 1 x 60mm
• Sound Level - 20.3 db(A)
• System Warning - Buzzer
• Kensington Security Slot - Yes

TS-673A-8G-US Specifications PDF
