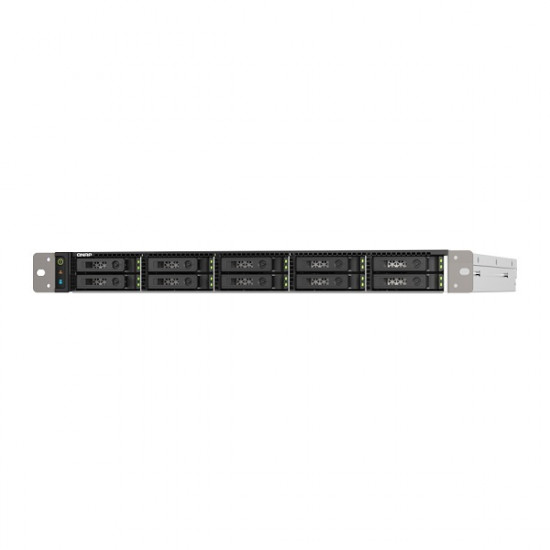

TS-h1090FU-7302P-128G-US QNAP 10-Bay Rackmount NAS 3.3 GHz AMD EPYC 7302P 16-core 128GB RAM - No HDD

Features:

• Space-efficient with only 58cm depth compared to 80+cm depth in a 1U rackmount server; accommodates ten U.2 NVMe PCIe Gen 4 or SATA 6Gb/s SSD drive bays
• Accelerates virtualization, intensive file access, media transfer, and large backup/restoration tasks
• Supports virtualization storage, virtual machines with SR-IOV support, and containerized apps
• Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan
• Allows installing 10/25/40/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance
• Scalable design to grow with your business by connecting QNAP’s economical expansion enclosures

Specifications

• CPU - AMD EPYC 7302P 16-core/32-thread processor, up to 3.3 GHz
• CPU Architecture - 64-bit x86
• Encryption Engine - Yes (AES-NI)
• System Memory - 128 GB RDIMM DDR4 ECC (8 x 16 GB)
• Maximum Memory - 1 TB+ (12 x 128 GB)
• Memory Slot - 12 x RDIMM DDR4
• Flash Memory - 5GB (Dual boot OS protection)
• Drive Bay - 10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
• Drive Compatibility - 2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives
• Hot-swappable - Yes
• SSD Cache Acceleration Support - Yes
• SR-IOV - Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2 (2.5G/1G/100M/10M)
• 25 Gigabit Ethernet Port - 2 x 25GbE SFP28 SmartNIC port
• Wake on LAN (WOL) - Yes
• Jumbo Frame - Yes
• PCIe Slot - 2 Slot 1: PCIe Gen4 x16, Slot 2: PCIe Gen4 x16
• USB 3.2 Gen 1 port - 3
• Form Factor - Rackmount
• LED Indicators - Disk, Status, LAN, storage expansion port status
• Buttons - Power, Reset
• Dimensions (HxWxD) - 44 × 430 × 580 mm
• Weight (Net) - 10.36 kg
• Weight (Gross) - 13.41 kg
• Operating Temperature - 0 - 40 °C (32°F - 104°F)
• Storage Temperature - -20 - 70°C (-4°F - 158°F)
• Relative Humidity - 5-95% RH non-condensing, wet bulb: 27 ̊C (80.6 ̊F)
• Power Supply Unit - 550W PSU (x2), AC 100-240 V
• Power Consumption: Operating Mode, Typical - 157.97 W
• Fan - 5 x 60mm, 12VDC
• System Warning - Buzzer
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory - 10,000

TS-h1090FU-7302P-128G-US Specifications PDF
