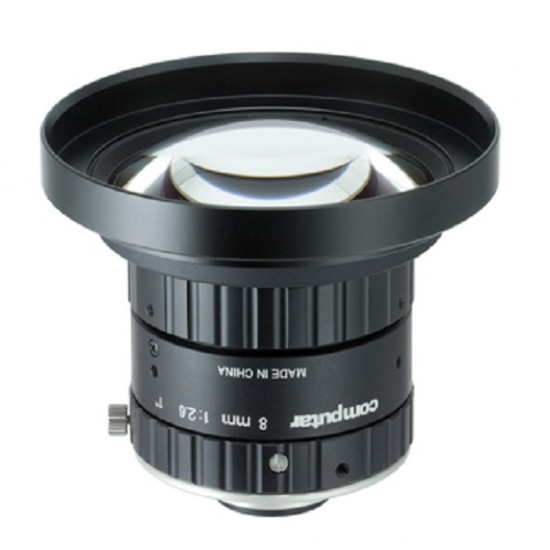

V0826-MPZ Computer 1" 8mm F2.6, 10 Megapixel Ultra Low Distortion Lens
- Brand: Computar
- Model: V0826-MPZ
- SKU: V0826-MPZ
- MPN: V0826-MPZ
$600.00
Features:
- For Machine Vision Applications
- 8mm Fixed Lens
- Compatible with up 20 Megapixel Cameras
- C Mount
- F 2.6
- Shorter Working Distance
- Compact & Light weight
- Vibration resistance up to 5G
Specifications
- Focal Length - 8mm
- Max. Aperature Ratio - 1:2.6
- Max. Image Format - 12.8mm x 9.6mm(φ 16mm)
- Operation Range
- Iris - F2.6 - F16.0
- Focus - 0.1m - 1nf.
- Angle of View
- 1 Type
- D - 88.8°
- H - 76.9°
- V - 61.5°
- Operating Temperature - -10°C ‐ +50°C
- Distortion
- 1 Type - -0.8%*
- Filter Size - M82 P=0.75mm
- Weight - 203.1g
