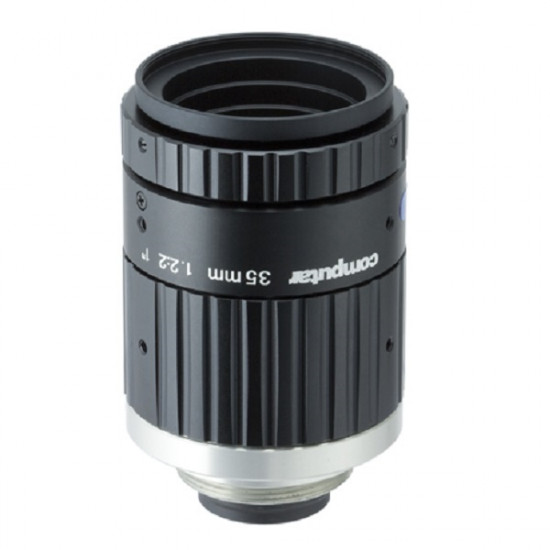

V3522-MPZ Computer 1" 35mm F2.2, 10 Megapixel Ultra Low Distortion Lens
- Brand: Computar
- Model: V3522-MPZ
- SKU: V3522-MPZ
- MPN: V3522-MPZ
$547.00
Features:
- For Machine Vision Applications
- 35mm Fixed Lens
- Compatible with up 20 Megapixel Cameras
- C Mount
- F 2.2
- Shorter Working Distance
- Compact & Light weight
- Vibration resistance up to 5G
Specifications
- Model No - V3522-MPZ
- Focal Length - 35mm
- Max. Aperture Ratio - 1:2.2
- Max. Image Format - 12.8mm x 9.6mm(φ16mm)
- Operation Range
- Iris - F2.2 ‐ F16.0
- Focus - 0.2m ‐ Inf.
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D
- 1 Type - 69.7mm x 52.2mm
- Angle of View
- 1 type
- D - 25.8°
- H - 20.8°
- V - 15.7°
- Operating Temperature - -10°C ‐ +50°C
- Effective Lens Aperture
- Front - φ21.5mm
- Rear - φ15.6mm
- Distortion
- 1 Type - 0.0%
- Back Focal Length - 9.7mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M34 P=0.5mm
- Dimensions - φ39.5mm x 55.7mm
- Weight - 118.2g
