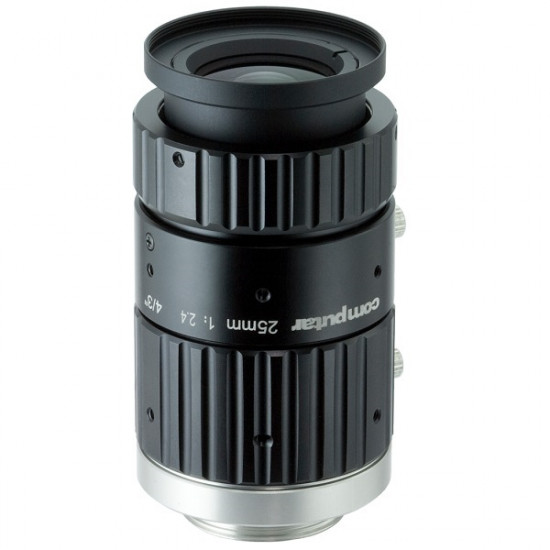

F2524-MPT Computar 1.4" C-Mount 25mm F2.4 45MP Manual Iris Lens
- Brand: Computar
- Model: F2524-MPT
- SKU: F2524-MPT
- MPN: F2524-MPT
$1,260.00
Features:
- 1.4” Format
- 45 Megapixel
- 25mm Fixed
- F2.4
- IMX350 2.74μm
- Full HD Format
- Manual Iris
- Compact & Lightweight
- Ultra Low Distortion
Specifications
- Model No. - F2524-MPT
- Focal Length - 25mm
- Max. Aperture Ratio - 1:2.4
- Image Circle Diameter - φ23.1mm
- Operation Range
- Iris - F2.4 ‐ F16.0
- Focus - 0.15m ‐ Inf.
- Control
- Iris - Manual
- Focus - Manual
- Operating Temperature - -10°C ‐ +50°C
- Angle of View
- Sensor Size 1.4 type
- Diagonal 19.08mm×13.03mm - 49.6°
- Horizontal (φ23.1mm) - 41.9°
- Vertical (φ23.1mm) - 29.3°
- Sensor Size 1.2 Type
- Diagonal 14.60mm×12.63mm - 42.4°
- Horizontal (φ19.3mm) - 32.7°
- Vertical (φ19.3mm) - 28.5°
- Sensor Size 1.1 Type
- Diagonal 14.19mm×10.38mm - 39.0°
- Horizontal (φ17.6mm) - 31.8°
- Vertical (φ17.6mm) - 23.6°
- Effective Lens Aperture
- Front - φ20.7mm
- Rear - φ18.7mm
- Distortion (Inf.)
- 1.4 type - 0.06%
- Back Focal Length - 18.1mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M34 P=0.5mm
- Dimensions - φ39mm×66mm
- Weight - 152g
