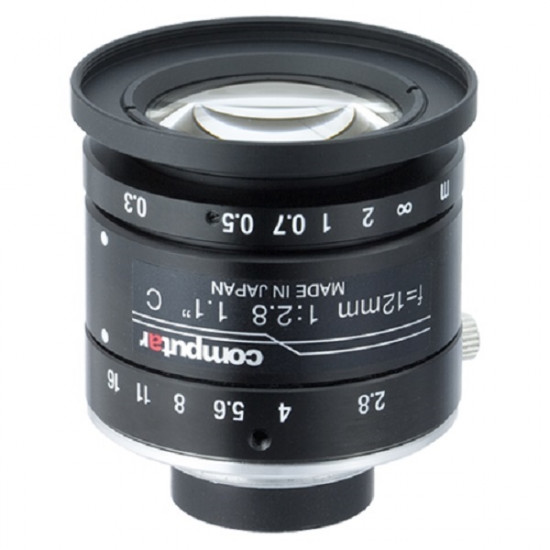

V1228-MPY2 Computar 1.1" C-Mount 12mm F2.8 12MP Manual Iris Lens
- Brand: Computar
- Model: V1228-MPY2
- SKU: V1228-MPY2
- MPN: V1228-MPY2
$553.00
Features:
- For Machine Vision and ITS Applications
- 12mm Fixed Lens
- 12 Megapixel
- C Mount
- Smallest 1.1” format lens for > 10MP Lens in the industry
- F 2.8
- 3.45µm pixel size
- Lightweight
- Vibration resistance up to 5G
The MPY Series supports a 1.1” sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high-performance optics with a variety of common focal lengths for maximum application flexibility.
Specifications
- Model No - V1228-MPY2
- Focal Length - 12mm
- Max. Aperture Ratio - 1:2.8
- Max. Image Format - 14.2mm x 10.4mm(φ17.6mm)
- Operation Range
- Iris - F2.8 ‐ 16.0
- Focus - 0.3m - inf
- Control
- Iris - Manual
- Focus - Manual
- Object Dimension at M.O.D.
- 1.1 Type - 35cm x 26cm
- 1 Type - 32cm x 24cm
- 2/3 Type - 22cm x 16cm
- Angle of View D - 1.1 type - 71.1°
- Angle of View H - 1.1 type 60.5°
- Angle of View V - 1.1 type 46.2°
- Effective Lens Aperture
- Front - φ26.2mm
- Rear - φ16.7mm
- Distortion
- 1.1 type - -0.5%
- 1 type - -1.0%
- 2/3 type - -1.4%
- Back Focal Length - 8.4mm
- Flange Back Length - 17.526mm
- Mount - C‐Mount
- Filter Size - M40.5 P=0.5mm
- Weight - 97.2g
- Dimensions - φ42.0mm x 36.1mm
- 1 type - 66.4° - 2/3 type - 48.6°
- 1 type - 55.5° - 2/3 type - 39.6°
- 1 type - 42.9° - 2/3 type - 30.1°
- Operating Temperature - -10°C ‐ +50°C
