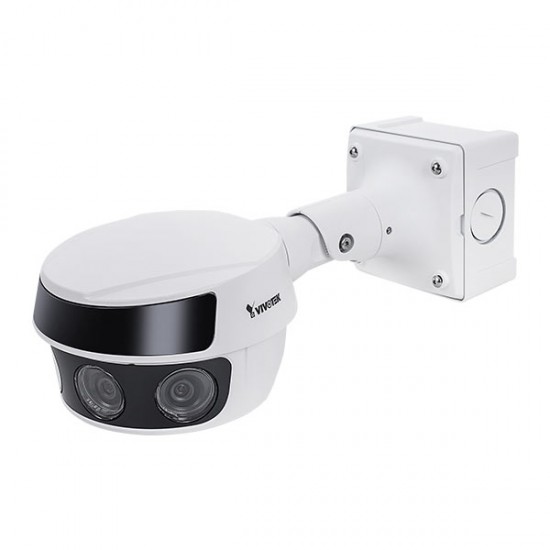

MS9321-EHV-V2 Vivotek Multi-Sensor 3.8mm 30FPS @ 20MP Outdoor IR Day/Night WDR Panoramic IP Security Camera 24VAC/PoE

Features:

• H.265 Compression Technology
• 20MP Panoramic 180° View
• 30 fps @ 7680x2560 (WDR Pro on)
• Smart Stream III to Optimize Bandwidth Efficiency
• WDR Pro (120 dB) for Unparalleled Visibility in Extremely Bright and Dark Environments
• SNV (Supreme Night Visibility) for Low Light Conditions
• Built-in IR Illuminators with Smart IR II, Effective up to 30 Meters
• Trend Micro IoT Security

VIVOTEK's newly designed MS9321-EHV multi-sensor panoramic network camera offers the highest resolution and maximum field of view, reducing the total number of cameras required and helping save on the installation costs. Featuring 4 x 5MP CMOS Sensors, the multiple sensor network camera can monitor full 180° horizontal views and deliver the highest-quality comprehensive coverage, making it an ideal outdoor surveillance solution with excellent image details.

Specifications

Model - MS9321-EHV

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 8GB
• RAM - 5GB

Camera Features

• Image Sensor - 1/2.7"" Progressive CMOS
• Max. Resolution - 7680x2560 (20MP)
• Lens Type - Fixed-focal
• Focal Length - 3.8 mm
• Aperture - F1.8
• Iris type - Fixed-iris
• Field of View - 180°(Horizontal), 65° (Vertical), 48° ~ 180° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*4
• Minimum Illumination - 0.095 Lux @ F1.8 (Color) 0.005 Lux @ F1.8 (B/W) 0 Lux with IR Illuminators on
• Pan Range - ±90°
• Tilt Range - 90°
• Pan/Tilt/Zoom Functionalities - ePTZ : 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage - Slot type : MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 7680x2560 (WDR Pro on)
• Maximum Streams - 4 simultaneous streams
• S/N Ratio - 61.5 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings - Adjustable image size, quality and bit rate, time stamp, text overlay, flip and mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, HLC, defog, 3DNR, DIS

Audio

• Audio Capability - Two-way Audio (full duplex)
• Compression - G.726, G.711
• Interface - External microphone input, External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45)
  *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Supported, Specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection
• VADP Package - Genetec Package, Trend Micro IoT Security

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera ampering detection, audio detection, MicroSD card life expectancy, shock detection, cybersecurity events (block brute force attack, block cyber attack, quarantine event)
• Alarm Events - Event notification using HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors - RJ-45 cable connector for 10/100/1000Mbps Network/PoE connection Audio input Audio output AC 24V power input Digital input*1 Digital output*1
• LED Indicator - System power and status indicator
• Power Input - AC 24V IEEE 802.3at PoE Class 4
• Power Consumption - AC 24V: Max. 24 W, PoE : Max. 24.65 W
• Dimensions - 308 x 167 x 130 mm (w/o junction box), 369 x 167 x 132 mm (w/ junction box )
• Weight - 2400 g
• - IP66, IK10
• Safety Certifications - CE, FCC Class B, UL, LVD, VCCI, C-Tick
• Operating Temperature - Starting Temperature : -30°C ~ 60°C (-22°F ~ 140°F), Working Temperature : -40°C ~ 60°C (-40°F ~ 140°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7 Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above, Internet Explorer 10/11
• Other Players - VLC : 1.1.11 or above, QuickTime: 7 or above

Included Accessories

• Others - Quick installation guide, alignment sticker, screw pack, warranty card, junction box
