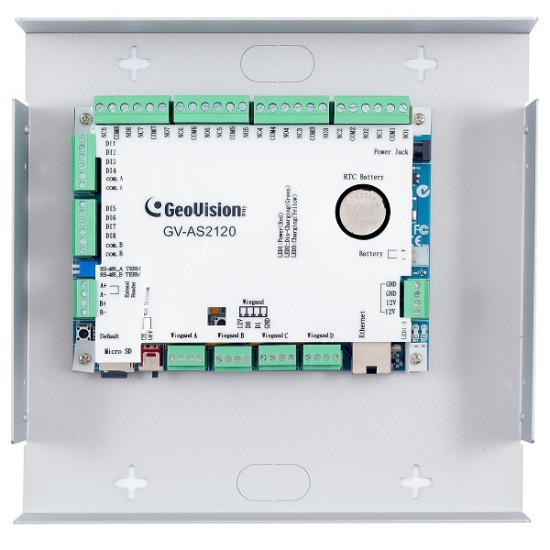

84-AS21200-0010 Geovision GV-AS2120 4 Door Access Controller w/ Built-In PoE - Iron Enclosure

Features:

• Model Number: GV-AS2120
• Manufacturer SKU Number: 84-AS21200-010U
• Sales Part Number: 510-AS2120-000
• One-way control: 4 doors Two-way control: 2 doors by Wiegand only, 4 doors by Wiegand, RS-485 and network
• 4 Wiegand card readers of 26 to 64 bits
• 8 GV-Readers and GV-GF Fingerprint Readers through RS-485 connection
• Built-in 8 digital inputs and 8 relay outputs
• Suitable for controlling doors, parking gates and access to elevator call buttons
• Support for tampering alarm DC 12V, 3A / PoE+ (IEEE 802.3at)
• ****POWER SUPPLY NOT INCLUDED****

Specifications

• CPU - 32-bit ARM7TDMI
• Number of User Cards - 40,000 cards
• Event Buffer - 1,000,000 events and log data
• Power - 12V DC, 3A / PoE+ (IEEE 802.3at, 25.5 W)
• RS-485 Interface - 1 RS-485 interface only for GV-Readers and GV-GF Fingerprint Readers (max. 8 readers)
• Wiegand Interface - 4 Wiegand interfaces, 26 ~ 64 bit format, 12V DC power supply, 200mA
• TCP/IP Interface - 1 TCP-IP interface for GeoVision network readers
• Communication - TCP/IP
• Battery - Replaceable button cell
• Input - 8 inputs, dry contact, NO/NC
• Output - 8 relay outputs (30VDC, 3A; 110V AC ~ 250V AC, 3A)
• Operating Temperature - 32 ~ 149 ™F
• Operating Humidity - 10% ~ 90% RH
• Dimension (W x H x D) - 8.27 x 8.03 x 1.83 in (Case included)
• Weight - 1.79 lb
• Certification - CE, FCC, RoHS

84-AS21200-010U Specifications
