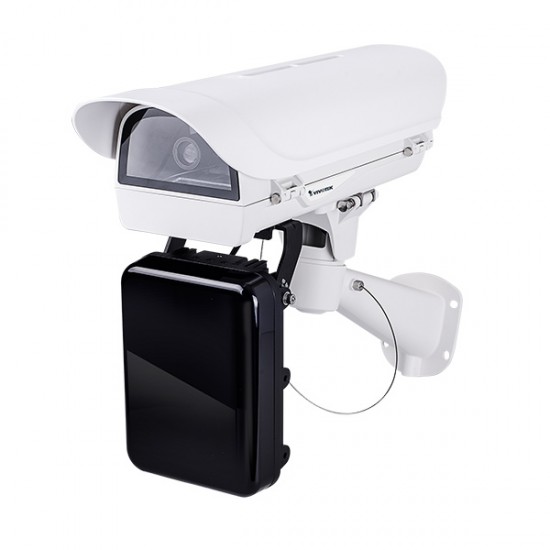

IP9165-LPCKIT-H2-V2 Vivotek 9-50mm Varifocal 60FPS @ 1080p Outdoor IR Day/Night WDR LPC IP Security Camera Kit 24VAC/24VDC - Special Order

Features:

• Capture Vehicle Speed up to 110MPH (180km/hr)
• One Camera Covers Both Scene Overview & LPC View
• Supreme Anti-Glare Capability
• One Camera Covers Dual Lanes
• Easy Installation & Low Maintenance
• i-CS Lens and Remote Controllable IR Illuminator for Clear Images and Easy Installation
• Certified by Numerous LPR Software Manufacturers around the World
• Vandal-Proof IK10-rated and Weather-Proof IP68-rated Housing

VIVOTEK’s IP9165-LPC-v2 Kit has an embedded powerful new generation SoC with 2GB RAM and 8GB Storage represents a total solution for LPC (License Plate Capture) applications by leveraging the top tier image quality and traffic monitoring ability of the IP9165-LPC-v2 box camera. The IR Illuminator utilizing CVA Tech provides adjustable beam angles for different distances. The Headlight filter is implemented to reduce instances of glare from direct headlight contact. The IP9165-LPC-v2 Kit delivers clear license plate images for reliable recognition, in both the sunniest days, and in the darkest nights.

Empowered with VIVOTEK Scene Mode, which provides different exposure levels to avoid overexposure in some lighting conditions, the IP9165-LPC-v2 Kit can capture clear plate images from the vehicles moving at speeds of up to 110MPH (180km).

Value-added features such as i-CS (intelligent-CS) lens, EIS (Electric Image Stabilization) and remote IR beam angle adjustment ensure that the IP9165-LPC-v2 Kit can be easily installed and adjusted to provide the perfect LPR solution. Further, with the high-resolution images supporting a wide range of up to two lanee, the IP9165-LPC-v2 Kit is also the most economic solution in LPR applications.

Specifications

• Model - IP9165-LPC-v2 Kit (Highway, 9-50mm)
• Max. Speed - 110MPH (180 km/hr)
• IR Threshold - IR on: 300 Lux, IR off: 600 Lux, RS485 configurable
• Shutter Time - 1/1,600 to 1/10,000 sec.
• Max. Shutter Time - 1/5 to 1/32,000 sec
• IR Illuminators - CA80I8-2040 *1, 80W, 20° ~ 40° remote control beam angle
• Capture Range - Up to 35 meters *Suggested Distance: 10 ~ 20 m
• Captured Lanes - Road-side: 2 Lanes, Gantry: 2 Lanes
• Power Input - AC/DC 24V
• Power Consumption - Max. 110 W, AC/DC 24V, Suggested Power: AC 24V or DC 24V/ 5A
• Weight - 6,482 g
• Housing - Weather-proof IP68-rated housing, Vandal-proof IK10-rated housing
• Operating Temperature
  • Starting Temperature: 0°C ~ 60°C (32°F ~ 140°F)
  • Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F), -40°C ~ 60°C (-40°F ~ 140°F), with optional cold start heater
• Humidity - 90%

Video

• Compression - H.265, H.264, MJPEG
• Maximum Streams - 4 simultaneous streams
• Image Settings - Adjustable image size, quality and bit rate;Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile, LPC scene mode

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interface - 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45). *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Supported

Intelligent Video

• Video Motion Detection - Five-window video motion detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
• Alarm Events - Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• IP Camera Connectors - RJ-45 cable connector for Network/PoE, connection *1, Audio input *1, Audio output *1, DC 12V/AC 24V power input *1, Digital input *2, Digital output *2, RS485 *1, BNC *1
• Safety Certifications - IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above QuickTime: 7 or above

IP9165-LPCKIT-H2-V2 Specifications PDF
