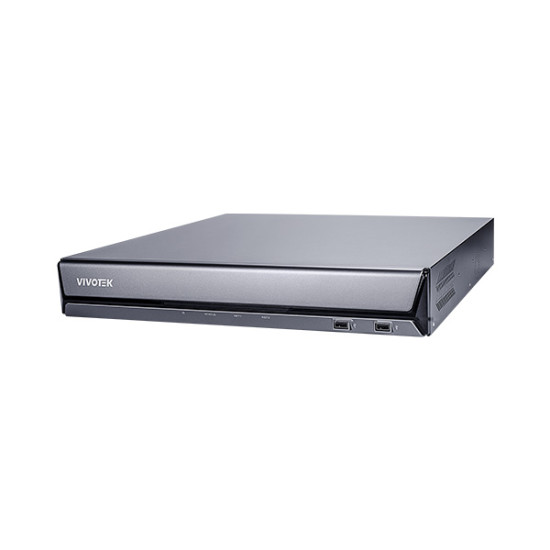

ND9542P Vivotek 32 Channel NVR 192Mbps Max Throughput - No HDD w/ Built in 16 Port PoE

Features:

• 1080P 360 fps with H.265 Compression Technology
• Up to 20MP Cameras Supported
• 4K Video Output Display for Clear and Detailed Monitoring
• Deep Search (Attribute Search, Scene Search)
• VIVOTEK Smart VCA Camera Supported for Event Search & Recording
• 802.3at/af PoE with PoE Management
• RAID 0, 1, 5 Supported to Prevent from Recording Data Loss
• Alarm In *16, Alarm Out *8

Specifications

• Model - ND9542P
• OS - Embedded Linux
• Watchdog - Hardware + Software
• Power Restoration - System Restart Automatically after Power Recovery

Display

• LiveView Display - 32 Channels Multi-Lay out Display : 1x1, 2x2, 3x3, 1P+3,2P+3,1M+5, 1P+6, 3V,1M+12, 4x4, 1M+31
• Video Output - HDMI x1, VGA x1
• Display Resolution - 3840x2160, 1920x1080, 1280x720
• Fisheye Dewarp - Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R, Web: 1O, 1R, 1P
• PTZ Operation - Direction Control, Home, Iris, Preset, Patrol (Group)

Video

• Video Format - H.265, H.264, MJPEG
• Graphic Decoder - Hardware decoding
• Decoding Resolution - Up to 7680x2560
• Decoding Capability - H.265/H.264: 3840x2160 @ 90 fps (3-CH), 1920x1080 @ 360 fps (12-CH)

Audio

• Audio Format - G.711, G.726
• Audio In/Out - 3.5 Phone Jack Audio Output x1, 3.5 Phone Jack Audio Input (Reserved) x1

Record

• Recording Time (sec.) - Pre-Record: 5 (Max. 10), Post-Record: 20 (Max. 300)
• Recording Stream - Dual
• Recording Throughput - 192 Mbps
• Recording Mode - Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
• Recording Setting - Recycle (unit: Day )
• Watermark - Supported

Storage & Backup

• HDD Devices - Internal x4 (3.5") *HDD purchased separately
• HDD Max. Capacity - *Please ref er to the recommended HDD list on the VIVOTEK website
• RAID - RAID 0, 1, 5
• Disk Management - Create, Format and Remove Disk HDD S.M.A.R.T.
• External Storage - USB Storage (USB 3.0)
• Video Clip Export - USB Dongle (FAT Format)
• Schedule Backup - FTP

Playback

• Play back Display - 4 Channels Multi-Lay out Display : 1x1, 2x2, 1P+3, 3V
• Play back Control - Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (story board)
• Video Search - By calendar, date/time, and alarm
• Thumbnail Explorer (Story board) - Listing the thumbnail of recorded video (Max. 2-CH)
• Snapshot - JPEG
• Video Clip Export - Supported

Network

• Ethernet - 10/100/1000Mbps Ethernet (RJ-45) x2
• Network Throughput Input/Output Total - 224 Mbps
• PoE - 802.3at/af compliant PoE ports x 16 (Total Max. 200 W) * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
• PoE Management - Supported
• Protocols - IPv 4, IPv 6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS

External Interface

• USB - Front: 2 (USB 2.0), Back: 1 (USB 3.0)
• Alarm In - 16
• Alarm Out - 8
• Audio - 3.5 Phone Jack Audio Output x1, 3.5 Phone Jack Audio Input (Reserved) x1
• RS485 - 1 (Reserved)

System

• Camera Integration - ONVIF Profile S
• Event - Motion Detection, Smart VCA Ev ent, Cy ber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Fan error
• Event Action - Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, VIVOCloud APP Notification
• User Management - User level: administrator, regular user
• Log - System, recording, user, error
• Date & Time - Time Zone, Manual, Automatic Sync NTP, Day light Saving Time
• Language - Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplif ied Chinese, Traditional Chinese, Arabic

Deep Search

• Object Search - People, Vehicle
• Scene Search - Line crossing, Intrusion, Loitering
• Attribute Search - People: Gender, Age, Clothing Color, Accessories Vehicles: Type, Color

Advanced Features

• VCA Counting Solution - Supported
• VCA Event Search - Supported
• Smart Search II - Supported
• Trend Micro IoT Security - Supported
• Cybersecurity Management - Supported

Remote Client

• Software AP - Shepherd, VAST 2, VSS (coming soon)
• Mobile/Tablet App - iViewer (Android & iOS)
• Web Browser - Chrome
• VIVOCloud - Supported

General

• Power Input - 100-240V AC, 50/60Hz
• Power Consumption - Max. 300 W
• Dimensions - 432 (W) x 421 (D) x 66 (H) mm
• Weight - 4.6 kg (without HDD)
• Operating Temperature - -10°C ~ 55°C (14°F ~ 131°F)
• Humidity - 0 ~ 95%
• Safety Certifications - CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
• Warranty - 36 months
