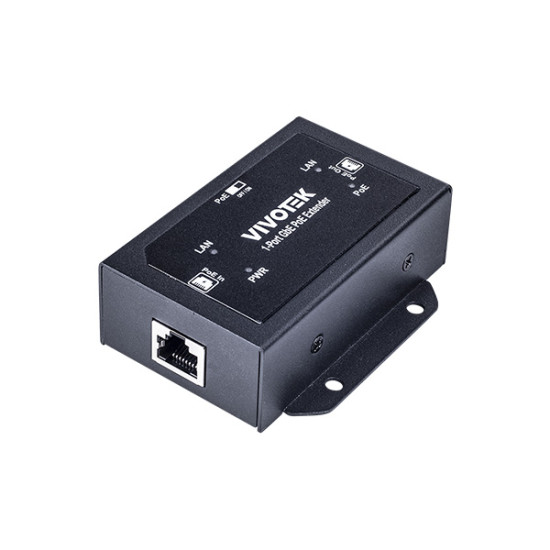

AP-GXC-0100 Vivotek Indoor 1-Port GE PoE Extender
- Brand: Vivotek
- Model: AP-GXC-0100
- SKU: AP-GXC-0100
- MPN: AP-GXC-0100
$180.00
Features:
- Gigabit Ethernet
- 802.3 bt compatible
- Surge Protection 12KV
- Max. 300m extention
Specifications
Power
- Extension Distance - 2 Units, Daisy-chain Installation Up to 300M Extension (No Local Power Required)
- PoE Input Power - 802.3 af/at/bt & PoH up to 95W
- PoE Output Power - 48~55VDC, Max. 68W Passive PoE
- PD Power Pin Assignment - 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- PSE Power Pin Assignment - 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- PD Gigabit Ethernet (RJ45) - 1
- PSE Gigabit Ethernet (RJ45) - 1
- PSE Power On/Off Dip Switch - Supported
- Surge Protection/Each PoE Port - 12KV
Networking
- Total Gigabit Ethernet Port - 2
- Mac Table - 2K
- Bandwidth - 10/100/1000 Mbps
- Switching Capacity - 4 Gbps
- Auto-MDI/MDI-X, Auto-Negotiation - Supported
Mechanical
- Dimensions (WxHxD) - 90 x 69.4 x 28.5 mm
- Weight - 0.19 KG
- LED Indicators - Power, LAN, PoE
Environmental
- Operating Temperature - -40°C ~ 65°C (-40°F ~ 149°F)
- Storage Temperature - -40°C ~ 85°C (-40°F ~ 185°F)
- Operating Humidity - 10 ~ 90% (non-condensing)
Certifications
- EMC - CE, FCC, VCCI, C-Tick
Warranty
- Warranty - 24 months
