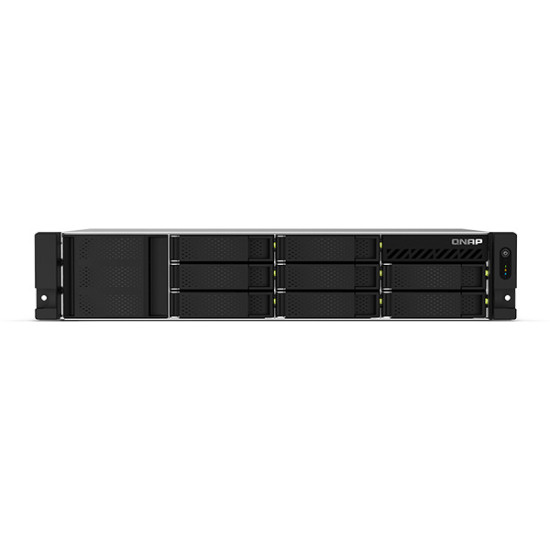

TS-864eU-RP-8G-US QNAP 8-Bay Rackmount NAS 2.9GHz Intel Celeron N5095 4-core 8GB - No HDD

Features:

• Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports
• Supports 4K media playback and real-time transcoding
• One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards
• Two USB 3.2 Gen 2 10Gbps ports for faster data transfer
• Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services
• Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS

The TS-864eU-RP is powered by Intel Celeron N5095 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU-RP surpasses the previous generation.

Specifications

• CPU - Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
• CPU Architecture - 64-bit x86
• Graphic Processors - Intel UHD Graphics
• Floating Point Unit - Yes
• Encryption Engine - Yes (AES-NI)
• Hardware accelerated Transcoding - Yes
• System Memory - 8 GB on board (non expandable)
• Memory Slot - 8 GB, not expandable
• Flash Memory - 4GB (Dual boot OS protection)
• Drive Bay - 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
• Drive Compatibility - 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
• Hot-swappable - Yes
• M.2 Slot - Optional via a PCIe adapter
• SSD Cache Acceleration Support - Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2 (2.5G/1G/100M/10M)
• 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) - Optional via network adaptor
• 10 Gigabit Ethernet Port - Optional via network adaptor
• Wake on LAN (WOL) - Yes
• Jumbo Frame - Yes
• PCIe Slot
• 1
• Slot 1: PCIe Gen 3 x2
• USB 2.0 port - 2
• USB 3.2 Gen 2 (10Gbps) Port - 2 x Type A USB 3.2 Gen 2
• HDMI Output - 1, HDMI 1.4b
• Form Factor - 2U Rackmount
• LED Indicators - HDD 1-8, Status, LAN, Expansion, Power
• Buttons - Power, Reset
• Dimensions (HxWxD) - 3.49 × 18.98 × 13.64 inch
• Weight (Net) - 17.42 lbs
• Weight (Gross) - 23.08 lbs
• Operating temperature - 0 - 40 °C (32°F - 104°F)
• Storage Temperature - -20 - 70°C (-4°F - 158°F)
• Relative Humidity - 5-95% RH non-condensing, wet bulb: 27 ̊C (80.6 ̊F)
• Power Supply Unit - 300W (x2), 100-240V
• Power Consumption: HDD Sleep Mode - 31.742 W
• Power Consumption:Operating Mode, Typical - 55.83 W
• Fan - 3 x 60mm, 12VDC
• System Warning - Buzzer
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory - 1500

TS-864eU-RP-8G-US Specifications PDF
