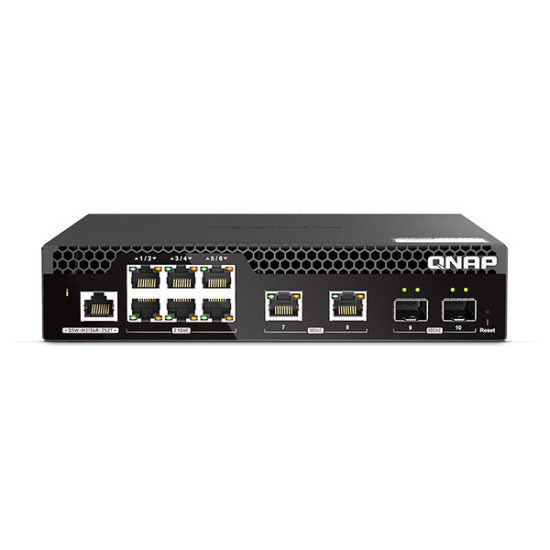

QSW-M2106R-2S2T-US Qnap 6 x 2.5Gbps RJ45 Plus 2 x 10GbE BASE-T RJ45 and 2 x SFP+ Ports Rackmount Web Managed Switch

Features:

• Includes two 10GbE SFP+ fiber ports (Backward compatible with 1G SFP) and two 10GbE RJ45 ports, compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) for high-speed networks
• The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive
• One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention
• Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables
• Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security
• QSS can be updated with just one click, helping IT staff ensure their network security

The QSW-M2106R-2S2T is a Layer 2 Web Managed Switch with two 10GbE SFP+ fiber ports, two 10GbE RJ45 ports and six 2.5GbE RJ45 ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2106R-2S2T offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution. With a half-width design, two QSW-M2106R-2S2T can be installed in a 1U rack space for space-saving.

Specifications

• Management Type - Web Managed
• Number of Ports - 10
• 10GbE SFP+ - 2
• 10GbE BASE-T (RJ45) - 2
• 2.5GbE (RJ45) - 6
• Power Supply Description - Internal Power Supply Unit
• Max. Power Consumption - 40W
• Input Power Type - AC
• Input Voltage Range - 100-240VAC, 50/60 Hz
• MAC Address Table - 16K
• Total Non-Blocking Throughput - 55Gbps
• Switching Capacity - 110Gbps
• Management Interface - Web
• Console - RJ45
• Energy Efficient Ethernet (IEEE 802.3az complaint) - Yes
• Fan - PWM VAPO Bearing fan x 2
• Supported Standards
  • IEEE 802.3 Ethernet
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-SX/LX
  • IEEE 802.3ae 10G Fiber
  • IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.1w RSTP
  • IEEE 802.3ad LACP
  • IEEE 802.1AB LLDP
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.1p Class of Service
• Form Factor - Rackmount
• LED Indicators
  • Per Port - Speed/Link/Activity
  • Per System - Power/Status
• Buttons - Reset button
• Dimensions (HxWxD) - 43.3 x 207 x 248.8 mm
• Weight (Net) - 3.37 lbs
• Weight (Gross) - 5.07 lbs
• Operating Temperature - 0 ̊C to 40°C (32°F to 104°F)
• Relative Humidity - 5~95% Non-condensing
• Certifications - CE, FCC, VCCI, BSMI
• Electromagnetic Compliance - CLASS B
• Jumbo Frames - 9K
• Warranty - 2 Years

QSW-M2106R-2S2T-US Specifications PDF
