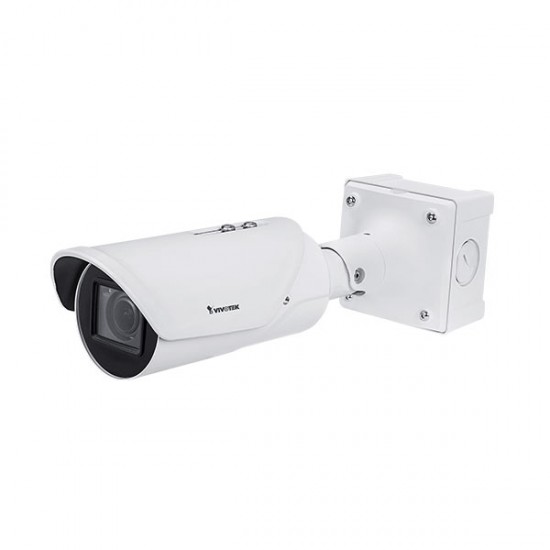

IB9387-LPR-V2 Vivotek 2.7~13.5mm Motorized 30FPS @ 5MP Outdoor IR Day/Night WDR LPR IP Security Camera 12VDC/24VAC/PoE

Features:

• Embedded Access Control Application Based on LPR Software
• Supports License Plates from over 70+ Countries
• Black and White Lists for License Plate Verification
• Centralized List Management in Single Camera
• Fully Integrated with VAST 2
• Various Open APIs Available for 3rd Party Integration
• Trend Micro IoT Security
• Supports Wiegand Protocol for Access Control Applications
• Supports Hazard ID Recognition
• Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing

VIVOTEK’s IB9387-LPR camera is a standalone LPR camera system, featuring built-in license plate recognition software as well as a white-lists and black-lists for advanced license plate verification. It can read multiple countries or states simultaneously, e.g. Singapore and Malaysia; Texas, Oklahoma and the neighboring states. It converts number plates into Wiegand signals for use with an access control system, and also offers various APIs for integration with 3rd party systems such as parking management, toll collection, and weighbridge systems. The system is ideally applied for parking access control and Stop & Go toll systems or any LPR applications where a vehicle stops, or almost comes to a complete stop.

Specifications

Model - IB9387-LPR-V2

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 256MB
• RAM - 1GB

Camera Features

• Image Sensor - 1/2.7" Progressive CMOS
• Max. Resolution - 2560x1920 (5MP)
• Lens Type - Motorized, Vari-focal, Remote Focus
• Focal Length - f = 2.7 ~ 13.5 mm
• Aperture - F1.4 ~ F2.8
• Iris type - P-iris
• Field of View - 30 ~ 100 (Horizontal), 23 ~ 72 (Vertical), 38 ~ 135 (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*6
• Minimum Illumination - 0.06 Lux @ F1.4 (Color) <0.01 Lux @ F1.4 (B/W) 0 Lux with IR illumination on
• Pan Range - 350
• Tilt Range - 90
• Rotation Range - 180
• Pan/Tilt/Zoom Functionalities - ePTZ : 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage - Built-in 16GB MicroSD card for LPR images, Slot type : MicroSD/SDHC/SDXC card slot Seas Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 2560x1920, 30 fps @ 2560x1440, 60 fps @ 1920x1080
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 50 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog

Audio

• Audio Capability - Two-way Audio (full duplex)
• Compression - G.711, G.726
• Interface - External microphone input, External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP,DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4,IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP,SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection
• Embedded Software - VIVOTEK ANPR
• VADP - Genetec package, Trend Micro IoT Security

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
• Alarm Events
  • Camera : Event notification via digital output, audio clip, email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card
  • ANPR Software : Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, send event to Milestone VMS, send event to Wiegand middleware board

General

• Connectors - RJ-45 cable connector for 10/100Mpbs, Network/PoE connection, Audio input, Audio output, AC 24V power input (optional), DC 12V power input, Digital input*1, Digital output*1
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 0 AC 24V (optional) DC 12V (Redundant Power)
• Power Consumption - PoE: Max. 12 W, AC 24V: Max. 11.5 W, DC 12V: Max. 10 W
• Dimensions - 118 x 118 x 294 mm
• Weight - 1,254 g
• Casing - IP66, IP67, IK10 (Metal Housing)
• Safety Certifications - CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
• Operating Temperature - Starting Temperature : -10C ~ 60C (14F ~ 140F), Working Temperature : -30C ~ 60C (-22F ~ 140F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7 Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above, QuickTime : 7 or above

Included Accessories

• Others - Quick installation guide, warranty card, screw pack, alignment sticker
