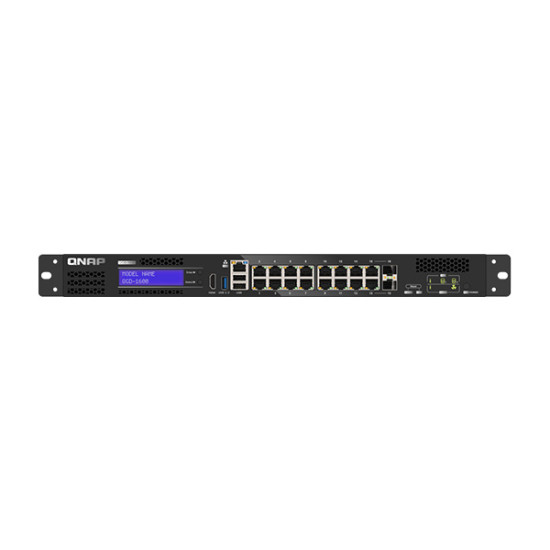

QGD-1600-4G-US QNAP 14 x 1GbE RJ45 Ports with 2 x 1GbE RJ45/SFP Combo Ports 100W Web Managed PoE Switch - 4GB RAM

Features:

• Gigabit RJ45/SFP ports - Multiple Gigabit and RJ45/SFP combo ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing
• User-friendly management interface - QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and pored devices at a glance, making central management of network devices intuitive and easy
• Flexible PCIe expansion - PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.1 Gen 2 (10Gbps) cards, or Wireless Adapters
• Layer 2 network - QGD-1600 provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface
• Two SATA drive bays - Supports up to two SATA drives
• Virtualization applications - Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications

QNAP's QGD-1600 is the world’s first managed switch that supports Virtual Machines (VMs). It features multiple Gigabit ports for highly flexible networking environment deployment. With a dual-CPU design, the QGD-1600 provides both Layer 2 management functions for VM and QTS applications. The QGD-1600 also features Software-Defined Networking (SDN), enabling it to function as a NAS, NVR, router and firewall for IP surveillance, network security and storage expansion applications. Therefore, the QGD series offers SMBs a cost-optimized and centrally managed LAN deployment solution.

Specifications

• Management Type - Web Managed
• Number of Ports - 16
• 1GbE (RJ45) - 14
• 1GbE SFP/RJ45 Combo Ports - 2
• PCIe Slot - Slot 1: PCIe Gen2 (x2), Slot 2: PCIe Gen2 (x2)
• USB 3.2 Gen 1 port - 1
• USB 2.0 port - 2
• Management Port - 1 x 1GbE
• USB 3.2 Gen 2 (10Gbps) Port - Optional via PCIe adapter
• HDMI Output - 1
• Power Supply Description - Internal Power Supply Unit
• Max. Power Consumption - 100W
• Input Power Type - AC
• Input Voltage Range - 100-240VAC, 50/60 Hz
• MAC Address Table - 8K
• Total Non-Blocking Throughput - 16Gbps
• Switching Capacity - 32Gbps
• Management Interface - Web
• Energy Efficient Ethernet (IEEE 802.3az complaint) - Yes
• Fan - System: 2 x 4 cm (12V DC)
• Supported Standards - IEEE 802.3u 100Tx Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z 1000Base-X, IEEE 802.3x Full-duplex flow control, IEEE 802.1q Virtual LANs (VLAN), IEEE 802.1p QoS Protocol for Traffic Prioritization
• Form Factor - Rackmount
• LED Indicators - Per Port: Link/Activity/Speed, Per System: Warning/Fan
• LCD Management - Yes
• Buttons - Device PSU power button, Host power button, Host reset button(load default), Switch reset button
• Dimensions (H x W x D) - 1.86 × 17.17 × 12.84 inch
• Weight (Net) - 9.72 lbs
• Weight (Gross) - 12.26 lbs
• Operating Temperature - 0°C to 40°C (32°F to 104°F)
• Relative Humidity - 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F)
• Certifications - CE, FCC, VCCI, BSMI RCM, CCC
• Electromagnetic Compliance - CLASS A, UL62368
• Jumbo Frames - 9k
• QTS - Built-in
• CPU - Intel® Celeron® J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz)
• CPU Architecture - 64-bit x86
• Internal Network Bandwidth - 2 x 1GbE
• Graphics Processors - Intel® HD Graphics 600
• Floating Point Unit - Yes
• Encryption Engine - (AES-NI)
• System Memory - 4 GB (1 x 4 GB)
• Maximum Memory - 8 GB
• Memory Slot - 2 x SODIMM DDR4
• Flash Memory - 4GB (Dual boot OS protection)
• Drive Bays - 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
• Drive Compatibility - 2.5-inch bays: 2.5-inch solid-state drives, 2.5-inch hard disk drives
• Hot-swappable - Yes
• M.2 SSD Slots - Optional via PCIe adapter
• SSD Cache - Acceleration Support
• File System Internal Hard Drive - EXT4
• File System External Hard Drive - EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license)
• Warranty - 2 Years

QGD-1600-4G-US Specifications PDF
