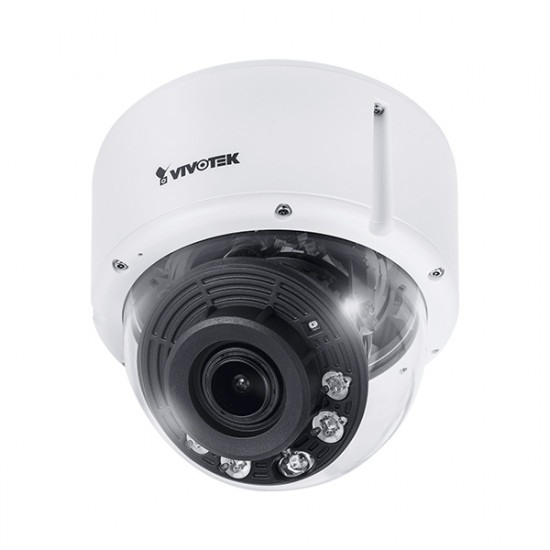

FD9391-EHTV-V2 Vivotek 3.9~10mm Varifocal 30FPS @ 8MP Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/24VAC/POE

The FD9391-EHTV-V2 is the new flagship outdoor dome network camera from VIVOTEK, equipped with a 4K ultra HD sensor capable of 3840 x 2160 resolution at 30 fps. With the latest in VIVOTEK WDR Pro technology, the FD9391-EHTV is capable of capturing the highest quality images in high contrast environments.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 1GB

Camera Features

• Image Sensor - 1/2" Progressive CMOS
• Maximum Resolution - 3840x2160
• Lens Type - Vari-focal, Remote Focus
• Focal Length - f = 3.9 ~ 10 mm
• Aperture - F1.5 ~ F2.7
• Auto-iris - P-iris
• Field of View - 45° ~ 119° (Horizontal), 25° ~ 63° (Vertical), 52° ~ 142° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Removable IR-cut filter for day & night function
• Minimum Illumination - 0.02 Lux @ F1.5 (Color), 0.01 Lux @ F1.5 (B/W), 0 Lux with IR illumination on
• Pan Range - 353°
• Tilt Range - 80°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
• IR Illuminators - Built-in IR Illuminators up to 50 meters with Smart IR II
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 3840x2160 (WDR Pro on), 120 fps @ 1920x1080 (WDR Pro off)
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 60.5 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and constant bit rate control; Smart Stream III
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC

Audio

• Audio Capability - Two-way audio
• Compression - G.711, G.726
• Interface - Built-in Mic, External Mic input, External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
• Interface - 10 Base-T/100 BaseTX Ethernet (RJ-45)
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detection, human detection, time filter

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, advanced motion detection, MircoSD card life expectancy
• Alarm Events - Event notification using HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors
  • RJ-45 cable connector for Network 10/100/1000 Mbps PoE connection*1
  • Audio input*1
  • Audio output*1
  • DC 12V power input*1
  • AC 24V power input *1
  • Digital input *1
  • Digital output *1
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3at Class4 PoE AC 24V/DC 12V, Power redundancy
• Power Consumption - Max. 25W
• Dimensions - Ø 155 x 138 mm
• Weight - 1,306 g
• Casing - IP66, IK10
• Safety Certifications - CE, FCC Class A, VCCI, C-tick, NEMA 4X, UL
• Operating Temperature
  • Starting Temperature - -40°C ~ 60°C (-40°F~ 140°F)
  • Working Temperature (IR off) - -50°C ~ 60°C (-58°F ~ 140°F)
  • Working Temperature (IR on) - -50°C ~ 50°C (-58°F ~ 122°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only)Internet Explorer 10/11
• Other Players
  • VLC - 1.1.11 or above
  • QuickTime - 7 or above
