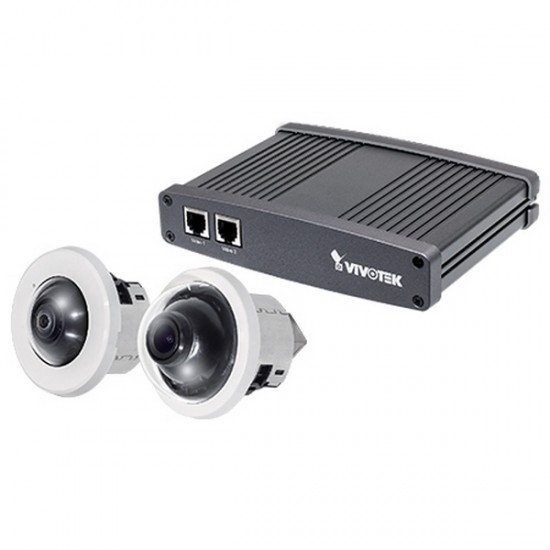

VC8201-M13 Vivotek Split Type Camera Kit w/ 1 x CU8131 1MP WDR Camera, 1 x CU8171 5MP Fisheye Camera and 1 x VC8201 Video Core Encoder

VIVOTEK VC8201 is a split-type camera system, which the camera unit and the video core are separated. With the separated design, it enables the camera unit to be much smaller, making installation easier as well as blending in decoration easily. In addition, the VC8201 can connect up to two 5-Megapixel camera units with 8-meter long cables, dramatically saving installation effort.

The camera units CU8131 and CU8171 are designed as recessed dome type, in order to fit in the decoration. The CU8131 is equipped with a 1MP sensor and features WDR Pro technology, allowing the camera to capture clear images with high-contrast scenes. The CU8171 is built with a 5MP sensor and fisheye lens to provide a 360° surround view without blind spots. The VC8201 can support different combinations of two camera units, making the installation more flexible.

Incorporating a number of advanced features of VIVOTEK cameras, including 3DNR, tamper detection, 802.3af compliant PoE, SD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the VC8201 is the best solution of indoor video surveillance.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)

• Flash - 256 MB

• RAM - 512MB

Camera Features

Image sensor

• 1/3" Progressive CMOS (CU8131)

• 1/2.5" Progressive CMOS in 2560x1920 (CU8171)

Maximum Resolution

• 30 fps @ 1280x800 (CU8131)
• 15 fps @ 1696x1696 (CU8171)

Focal Length

• f=3.6mm
• f=1.27mm (CU8171)

Aperture

• F1.8 (CU8131)

• F2.0 (CU8171)

Field of View

• CU8131

• 86° (horizontal)

• 51° (vertical)

• 103° (diagonal)

• CU8171•180° (horizontal)

• 180° (vertical)

• 180° (diagonal)

Shutter Time

• 1/5 sec. to 1/32,000 sec.

WDR Technology

• WDR Pro (CU8131)

• WDR enhanced (CU8171)


Minimum Illumination

• CU8131

• 1.05 Lux @ F1.8, 50 IRE (Color)

• CU8171

• 0.66 Lux @ F2.0, 50 IRE (Color)


Tilt range

• 70° (CU8131)


Pan / Tilt / Zoom

• CU8131

• ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

• CU8171

• ePTZ: 12x digital zoom


On-board Storage

• SD/SDHC/SDXC Card Slot

Video

Compression

• H.264 & MJPEG


Video Source

• Up to 2 VIVOTEK camera units


Maximum Streams

• 3 simultaneous streams per camera unit


S/N Ratio

• Above 53 dB (CU8131)

• Above 62 dB (CU8171)


Dynamic Range

• 110 dB (CU8131)

• 57 dB (CU8171)


Video Streaming

• Adjustable resolution, quality and bitrate

• Configurable video cropping for bandwidth saving


Image Settings

• Adjustable image size, quality and bit rate

• Time stamp, text overlay, flip & mirror

• Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks

• Scheduled profile settings, 3D Noise Reduction

Audio

Audio Capability

• Audio input


Compression

• G.711

• GSM-AMR

Interface

• From camera unit

Network

Users

• Live viewing for up to 10 clients


Protocols

• IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

Interface

• 10 Base-T / 100BaseTX Ethernet (RJ-45)

ONVIF

• Supported, specification available at www.onvif.org

Intelligent Video

Video Motion Detection

• Five-window video motion detection


Alarm and Event

Alarm Triggers

• Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection

Alarm Events

• Event notification using digital output, HTTP, SMTP, FTP and NAS server

• File upload via HTTP, SMTP, FTP and NAS server


General

Connectors

• RJ-45 connector for Network/PoE connection

• RJ-12 connector for camera unit connection *2

• DC 12V power input

• Digital input *2

• Digital output *2


LED Indicator

• System power and status indicator


Power input

• DC 12V

• IEEE 802.3af PoE


Power consumption

• Max. 9.3 W (DC 12V)

• Max. 10.8 W (PoE)


Dimensions

• 145 mm (W) x 105 mm (D) x 32 mm (H) (VC8201)

• Ø: 60 mm x 93 mm (CU8131)

• Ø: 60 mm x 81 mm (CU8171)


Weight

• Net: 360 g (VC8201)

• Net: 58 g (CU8131)

• Net: 51 g (CU8171)


Safety Certifications

• CE, C-Tick, FCC Class B, LVD, VCCI


Operating Temperature

Starting Temperature:

• VC8201: 0°C ~ 50°C ( 32°F ~ 122°F )

• CU8131, CU8171: 0°C ~ 40°C ( 32°F ~ 104°F )

Working Temperature:

• VC8201: -10°C ~ 50°C ( 14°F ~ 122°F )

• CU8131, CU8171: -10°C ~ 40°C ( 14°F ~ 104°F )


Warranty

• 24 Months

System Requirements

Operating System

• Microsoft Windows 7 / Vista / XP / 2000


Browser

• Mozilla Firefox 7~10 ( Streaming only )

• Internet Explorer 7.x or 8.x


Other Players

• VLC: 1.1.11 or above
• QuickTime: 7 or above

VC8201-M13 Specifications PDF
