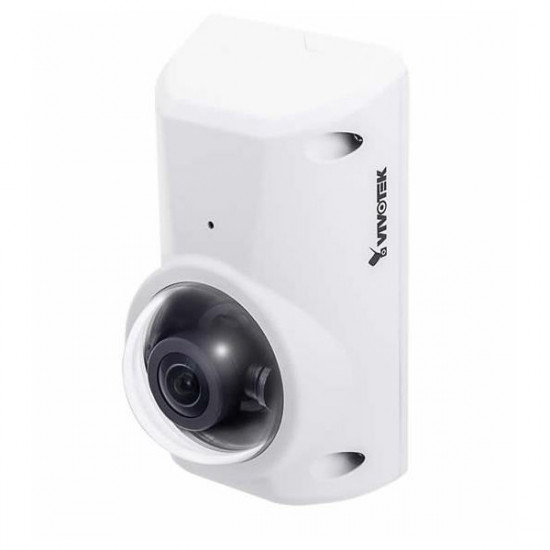

CC8370-HV Vivotek 1.6mm 30FPS @ 2048 x 1536 Outdoor Day/Night WDR Fisheye Panoramic IP Security Camera PoE
- Brand: Vivotek
- Model: CC8370-HV
- SKU: CC8370-HV
- MPN: CC8370-HV
$600.00
Introduction Video
Specifications
System Information
- CPU - Multimedia SoC (System-on-Chip)
- Flash - 128 MB
- RAM - 256 MB
Camera Features
- Image Sensor - 1/2.8" Progressive CMOS
- Maximum Resolution - 2048x1536
- Lens Type - Fixed-focal
- Focal Length - f = 1.6 mm
- Aperture - F2.0
- Field of View - 180° (horizontal) 130° (vertical) 180° (diagonal)
- Shutter Time - 1/5 sec. to 1/32,000 sec.
- WDR Technology - WDR Pro
- Minimum Illumination - 0.05 Lux @ F2.0 (Color)
- Pan/tilt/zoom Functionalities - ePTZ: 4x digital zoom IE plug-in
- On-board Storage - MicroSD/SDHC/SDXC card slot
Video
- Compression - H.264, MJPEG
- Maximum Frame Rate - 30fps @ 2048x1536
- Maximum Streams - 3 simultaneous streams
- S/N Ratio - 58.8 dB
- Dynamic Range - 100 dB
- Video Streaming - Adjustable resolution, quality and bitrate
- Image Settings - Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror & rotate; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings
Audio
- Audio Capability - One-way Audio
- Compression - G.711, G.726
- Interface - Buit-in Microphone
- Effective Range - 5 meters
Network
- Users - Live viewing for up to 10 clients
- Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
- Interface - 10Base-T/100BaseTX Ethernet (RJ-45) *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard
- ONVIF - Supported, specification available at www.onvif.org
Intelligent Video
- Video Motion Detection - Five-window video motion detection
Alarm and Event
- Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
- Alarm Events - Event notification using HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
General
- Connectors - RJ-45 for Network/PoE connection
- LED Indicator - System power and status indicator
- Power Input - IEEE 802.3af PoE Class 1
- Power Consumption - Max. 4.9 W
- Dimensions - 115 (D) x 65 (W) x 59 (H) mm
- Weight - Net: 331g
- Casing - IP66, IK10
- Safety Certifications - CE, LVD, FCC Class B, VCCI, C-Tick, UL
- Operating Temperature - Starting Temperature: -10°C ~ 50°C (14°F~ 122°F) Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
- Warranty - 24 months
System Requirements
- Operating System - Microsoft Windows 8/7/Vista/XP/2000
- Web Browser - Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10
- Other Players - VLC: 1.1.11 or above Quicktime: 7 or above
Included Accessories
- Others - Quick installation guide, warranty card, mounting bracket, screw pack
